Seiko SNM035 aka "Landmonster"

(Scuba Diver's Automatic Watch)

• Size:

45mm x 15.2mm

47mm from 9-3 counting the bump between the crowns, 49mm lug to lug)

• Case:

316L surgical grade stainless steel, screwdown caseback

• Bezel:

316L stainless steel, unidirectional rotating, 60-minute scale, luminous marker at 12 o'clock position, 120 "click"

• Crown:

Protected screwdown crown at 2 o'clock, and screwdown compass controller at 4 o'clock

• Dial:

Black, date aperture at 4 o'clock, inner 360 degree rotating compass dial ring

• Crystal:

Scratch-resistant Hardlex

• Movement:

Precision Seiko mechanical, 7s35 automatic/self-winding, 21 jewels, 42 hour power reserve, calendar date

• Illumination:

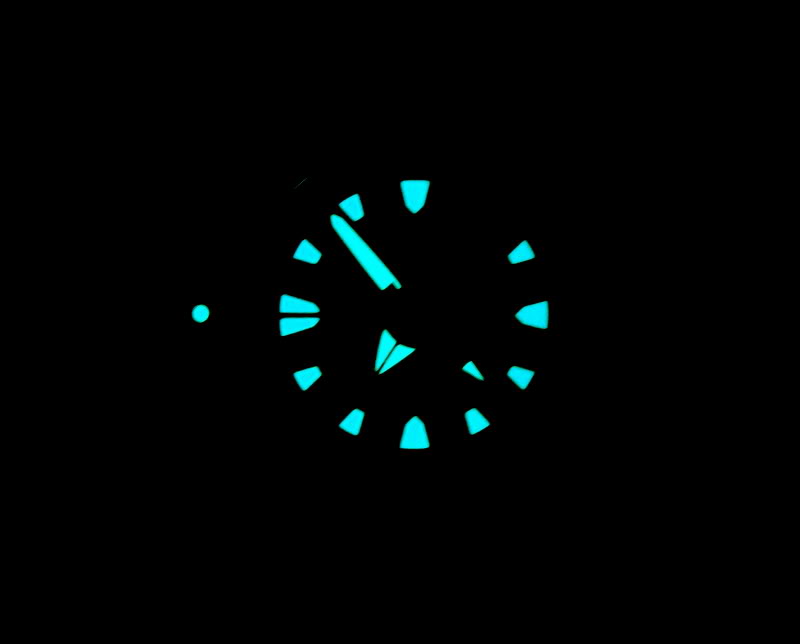

Large luminous hands, hour markers and bezel dot

• Water Resistant:

20 atm/200 meters/660 feet

• Band:

316L surgical grade stainless steel, fold-over push-button safety clasp, width 19.5mm, length men's, dive extension

• Weight: 209g with full length band

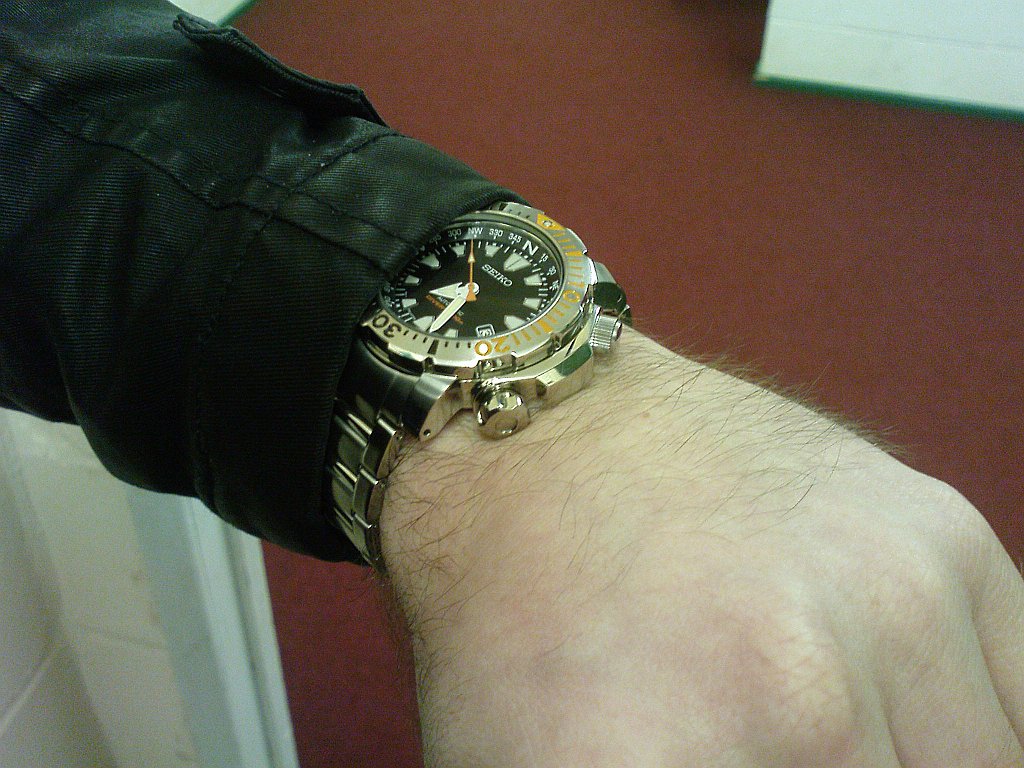

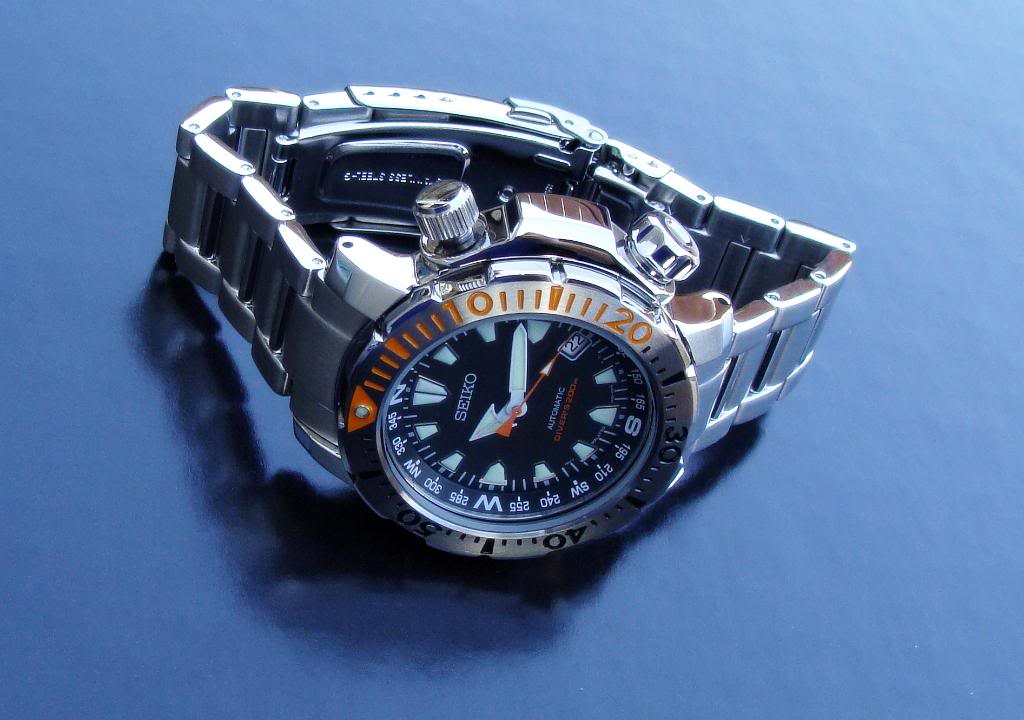

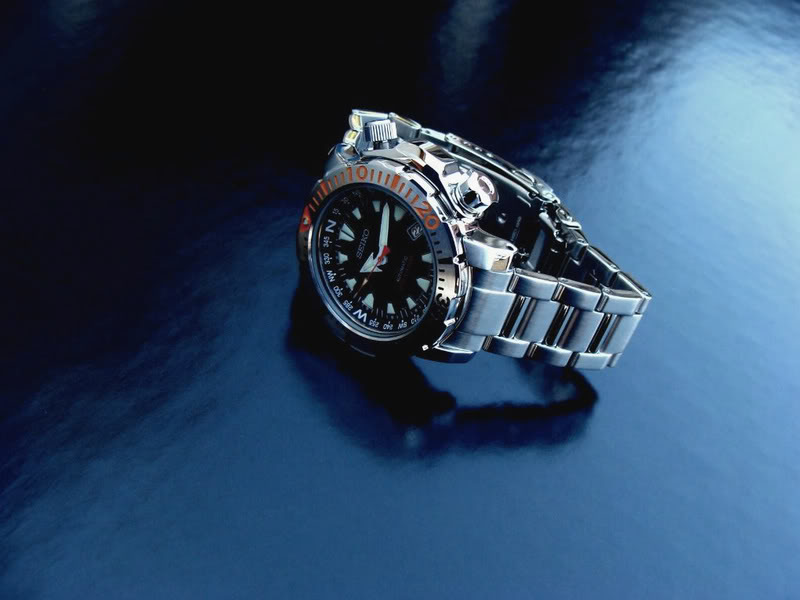

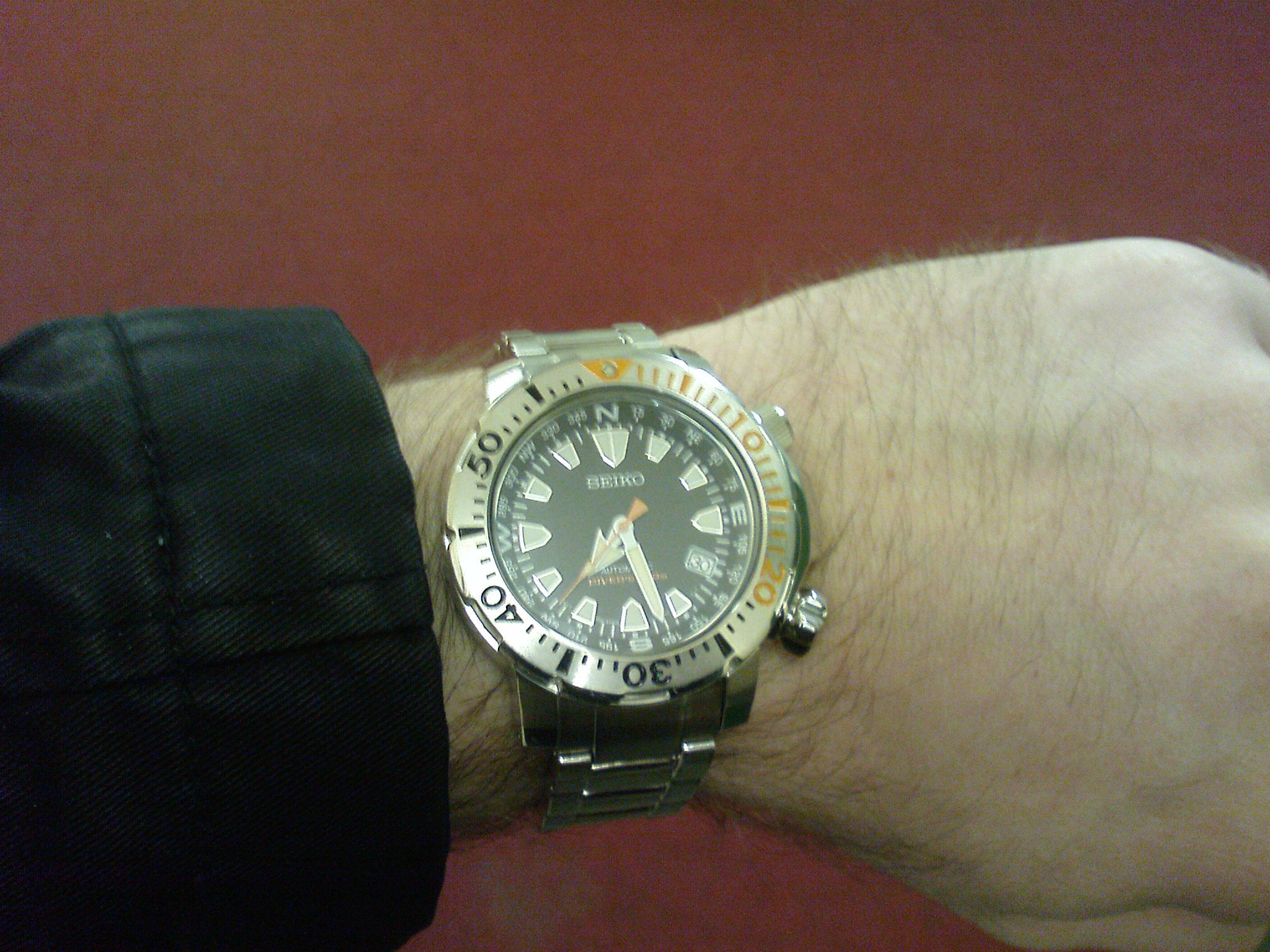

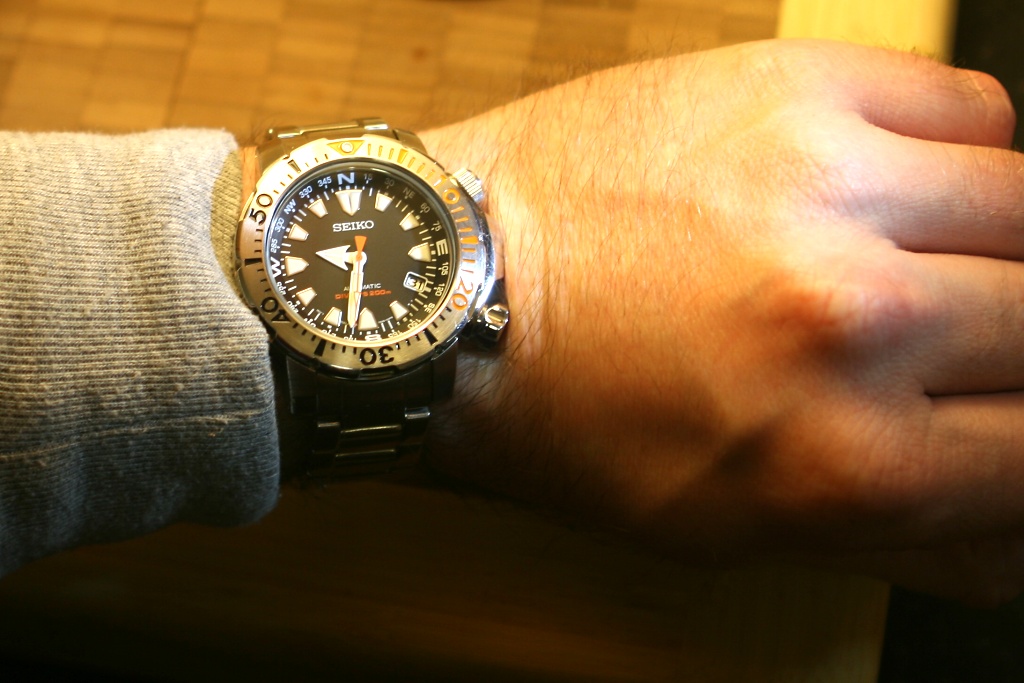

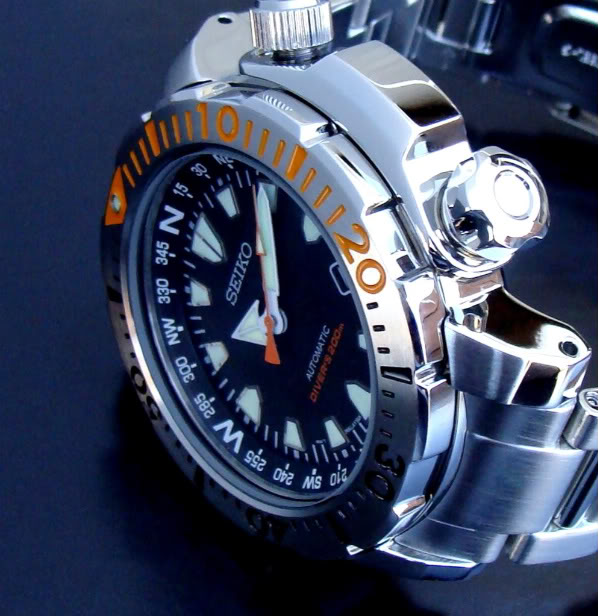

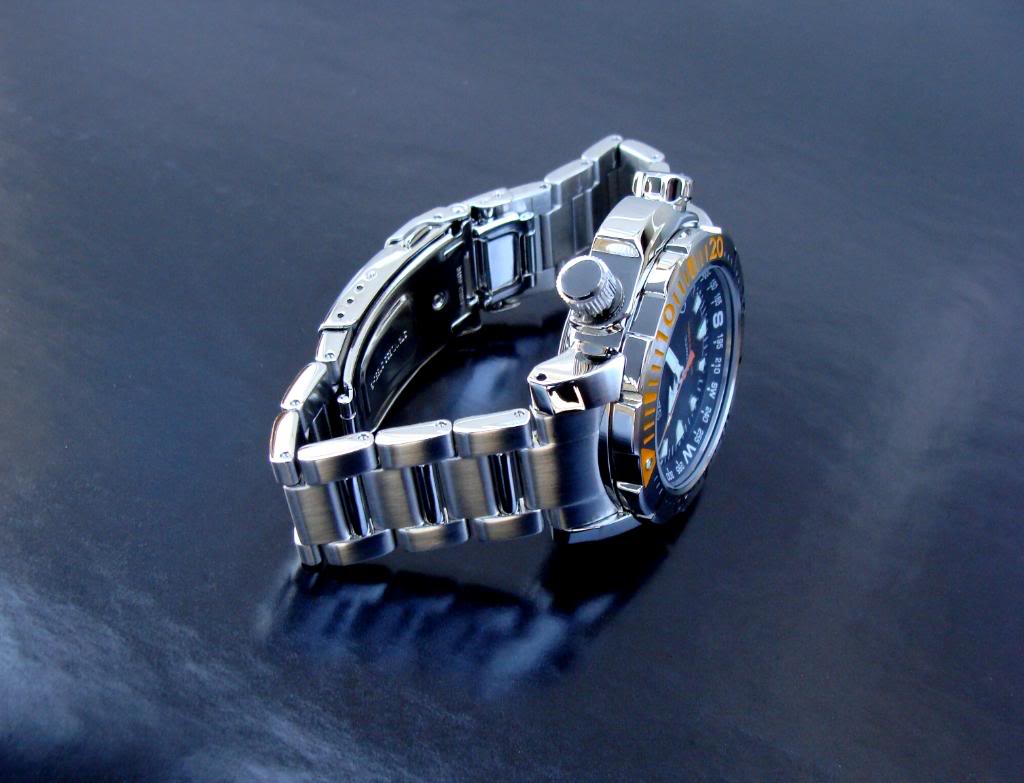

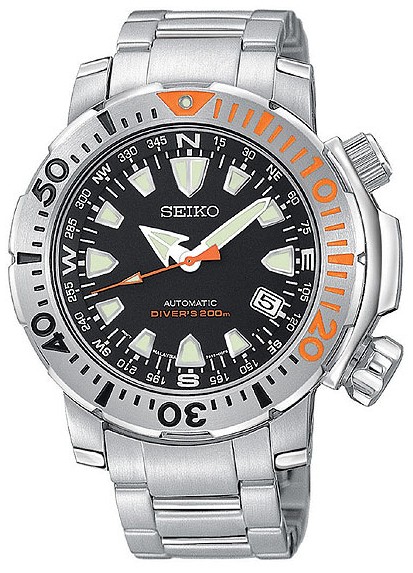

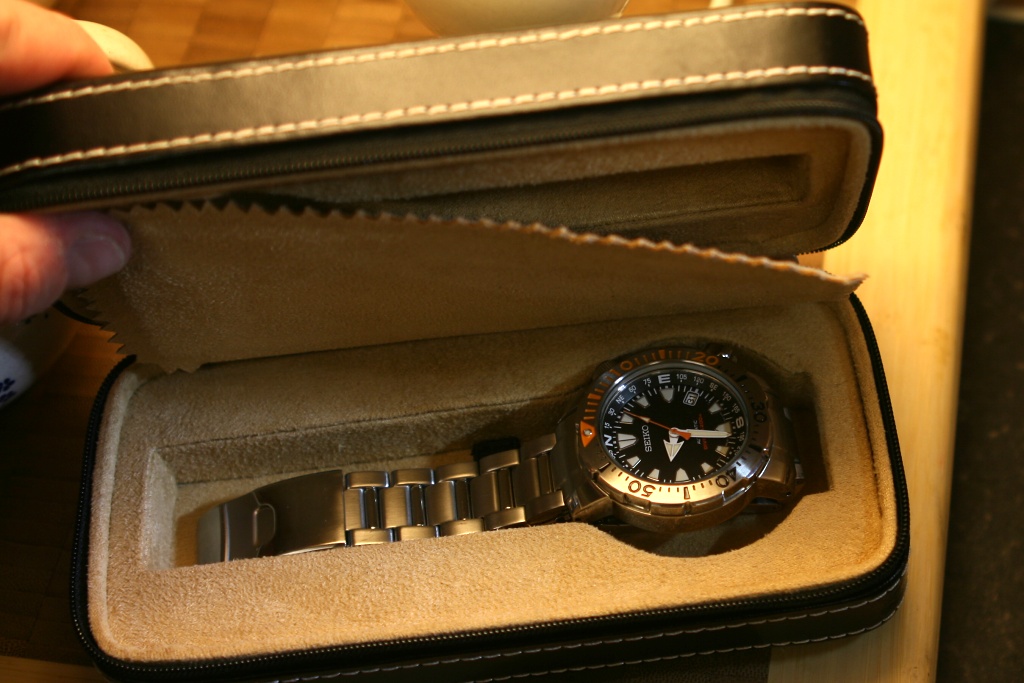

Here's few pictures, partly my own, a few collected from the internet (click to enlarge):

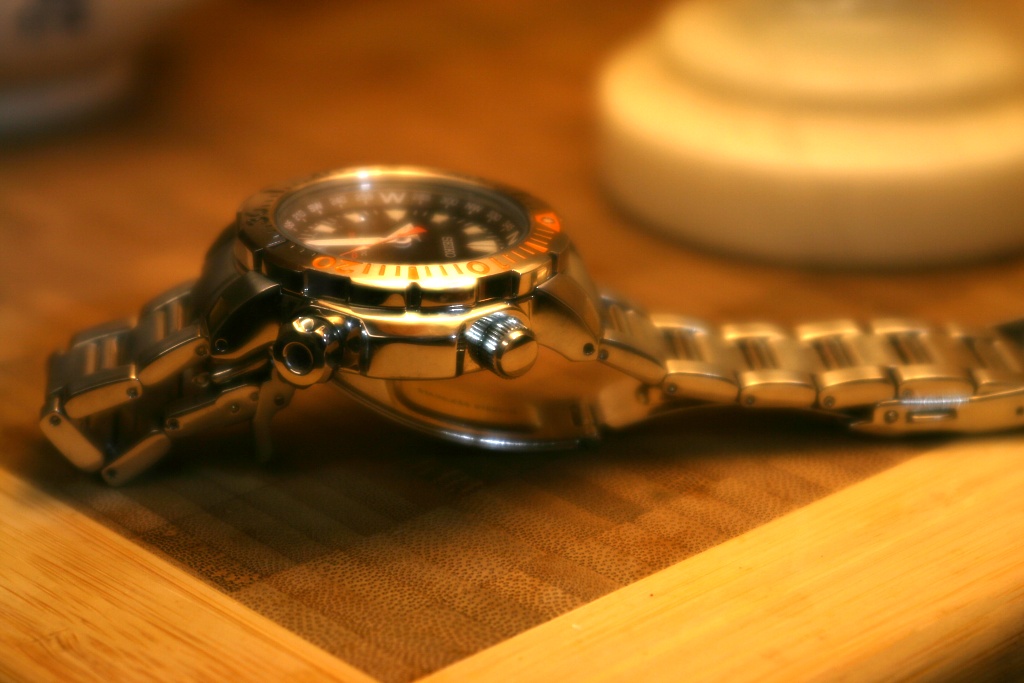

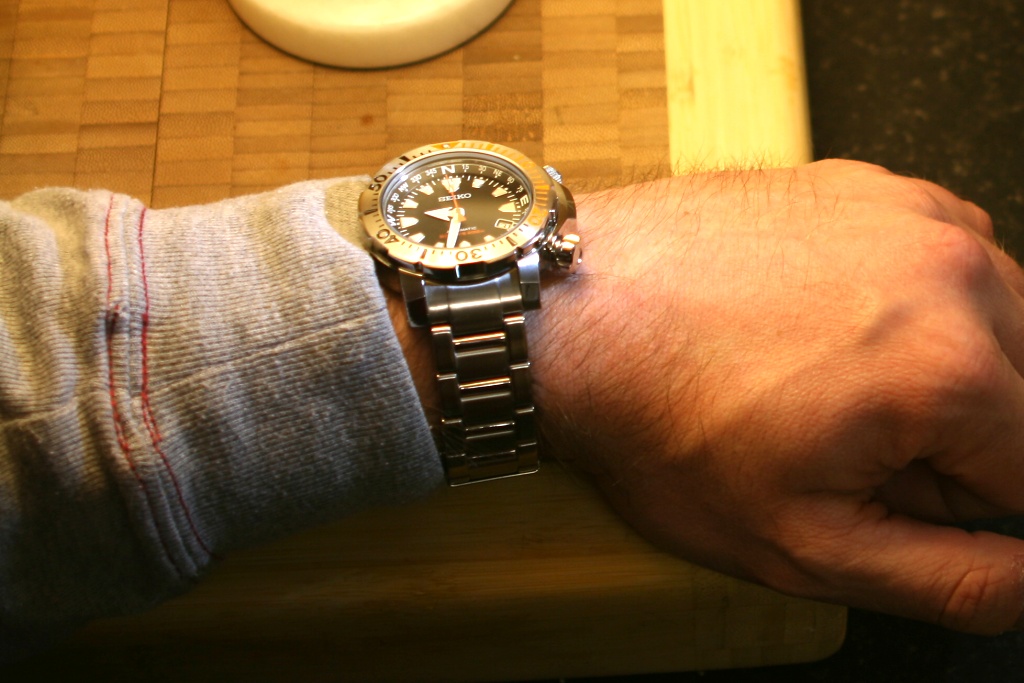

Some details:

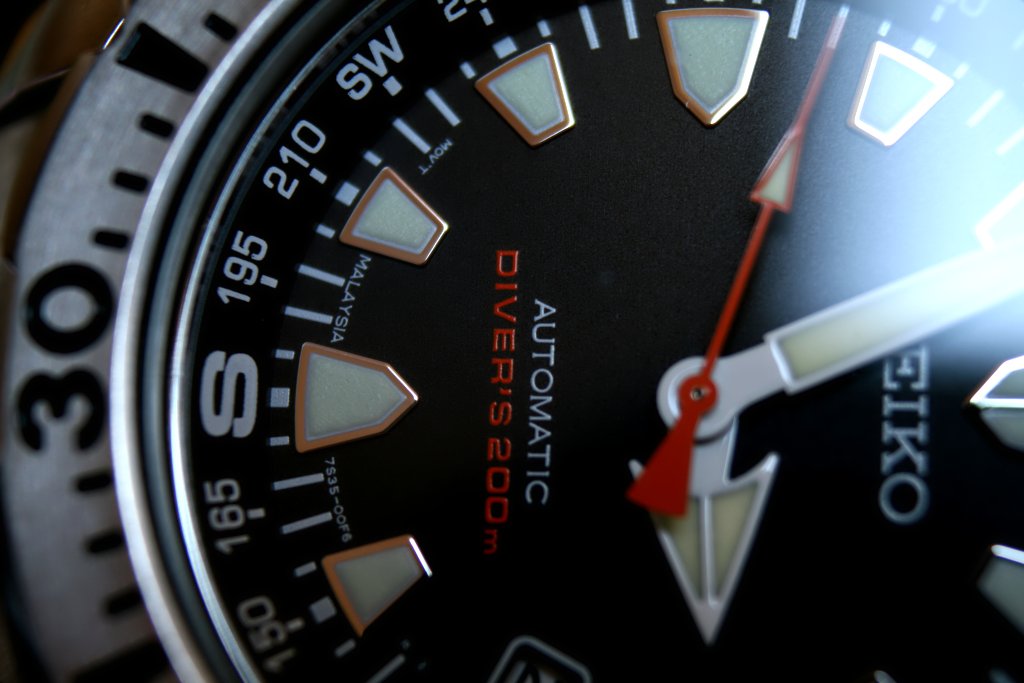

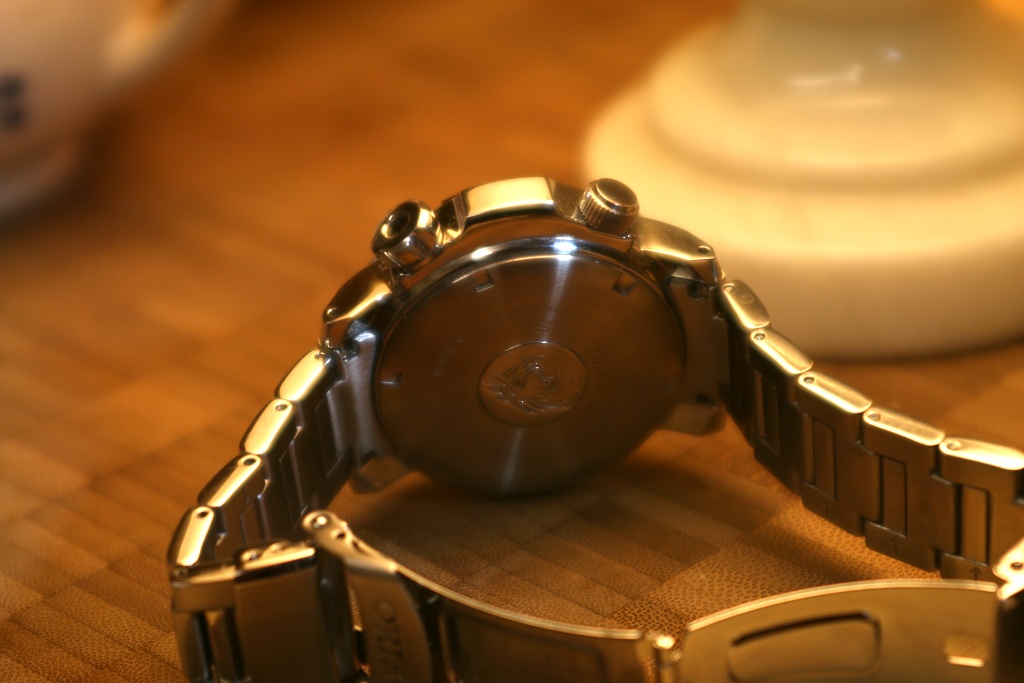

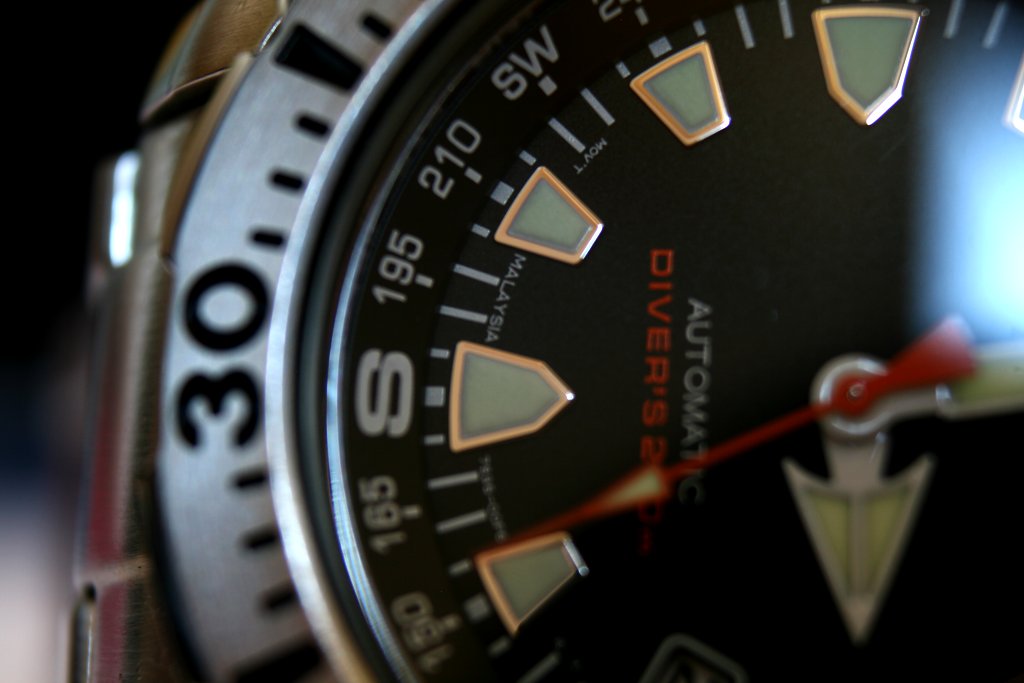

More details:





Files to download:

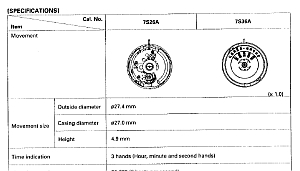

Parts Catalogue / Technical Guide (pdf)

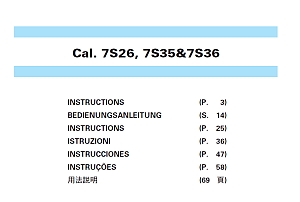

Manual (pdf)
